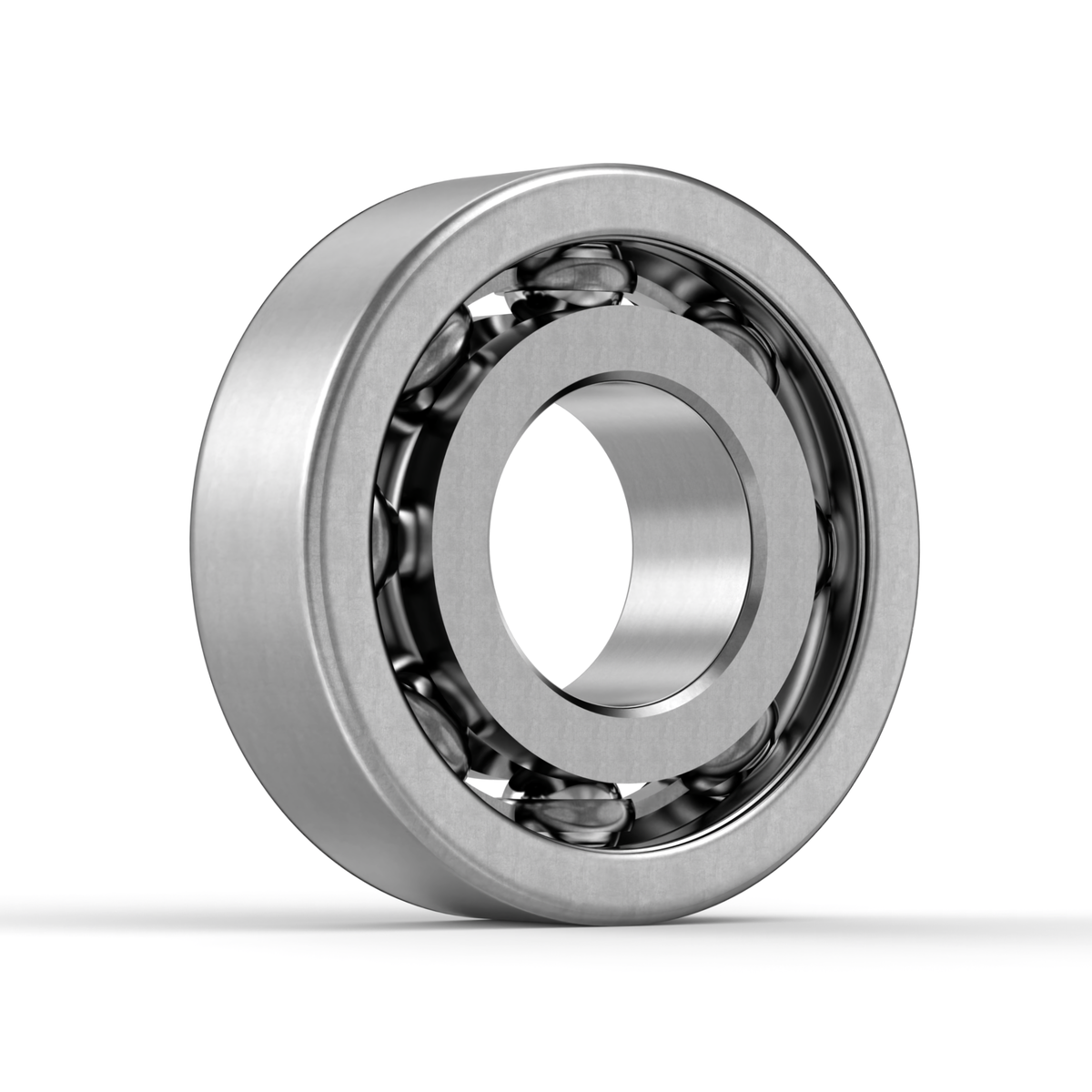

6228 C3 NSK
$299.64
Sale price
$299.64
Regular price
| 62/28 |
| d | 28 | mm | Bore diameter |
| D | 58 | mm | Outside diameter |
| B | 16 | mm | Width |
| r (min.) | 1 | mm | Chamfer dimension |
| d1 | 48.5 | mm | Outside diameter of inner ring |
| D1 | 37.5 | mm | Bore diameter of outer ring |
| Cr | 18300 | N | Basic dynamic load rating |
| C0r | 9500 | N | Basic static load rating |
| Grease | 12000 | min-1 | Grease lubrication |
| Oil (Oil-bath) | 14000 | min-1 | Oil-bath lubrication |
| da (min.) | 33 | mm | Diameter of shaft abutment (min) |
| da (max.) | 35.5 | mm | Diameter of shaft abutment |
| Da (max.) | 53 | mm | Diameter of housing abutment |
| ra (max.) | 1 | mm | Radius of shaft or housing fillet |
| fo | 13.9 | Factor |
| z | 9 | Number of Balls | |
| Dw | 8.731 | mm | Ball Diameter (mm) |
| Mass approx. | 0.175 | kg | Mass approx. |
