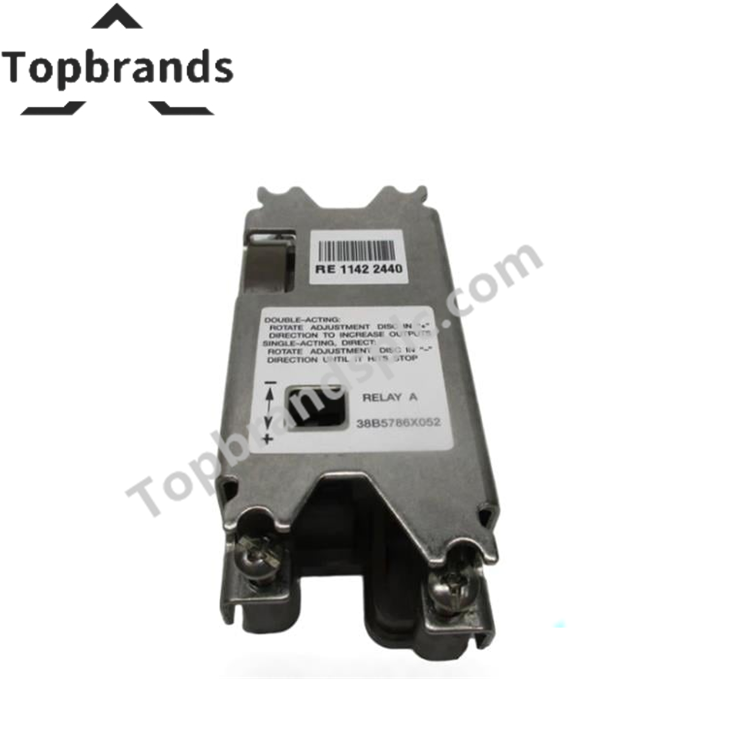

Emerson 38B5786X052 Relay Assembly

Description

The Emerson 38B5786X052 Relay Assembly is designed for reliable switching and control of electrical signals in industrial automation systems. It provides robust performance, electrical isolation, and long service life in demanding environments.

Specifications

• Manufacturer: Emerson
• Model Number: 38B5786X052
• Product Type: Relay Assembly
• System Compatibility: Emerson control and protection systems
• Input Voltage: 24 VDC nominal (typical relay coil supply)
• Output Type: Electromechanical relay contacts
• Contact Rating: Suitable for low‑voltage/high‑current switching applications
• Isolation: Electrical isolation between coil and contacts
• Protection: Short‑circuit and reverse polarity protection (design dependent)
• Operating Temperature: –20 °C to +60 °C
• Storage Temperature: –40 °C to +85 °C
• Humidity Range: 10–95% RH, non‑condensing
• Mounting: Rack or panel installation
• Weight: ~0.8 kg
• Shipping Weight: ~1.5 kg

Features

• Reliable Switching: Provides stable relay operation for industrial signals
• Electrical Isolation: Ensures safe separation between control and load circuits
• Industrial Durability: Built for continuous duty in harsh environments
• System Integration: Compatible with Emerson automation platforms
• Compact Design: Optimized for rack/panel installation
• Ease of Maintenance: Modular assembly for quick replacement
