(Group Buy) Dune65 Keyboard Kit

Inspiration:

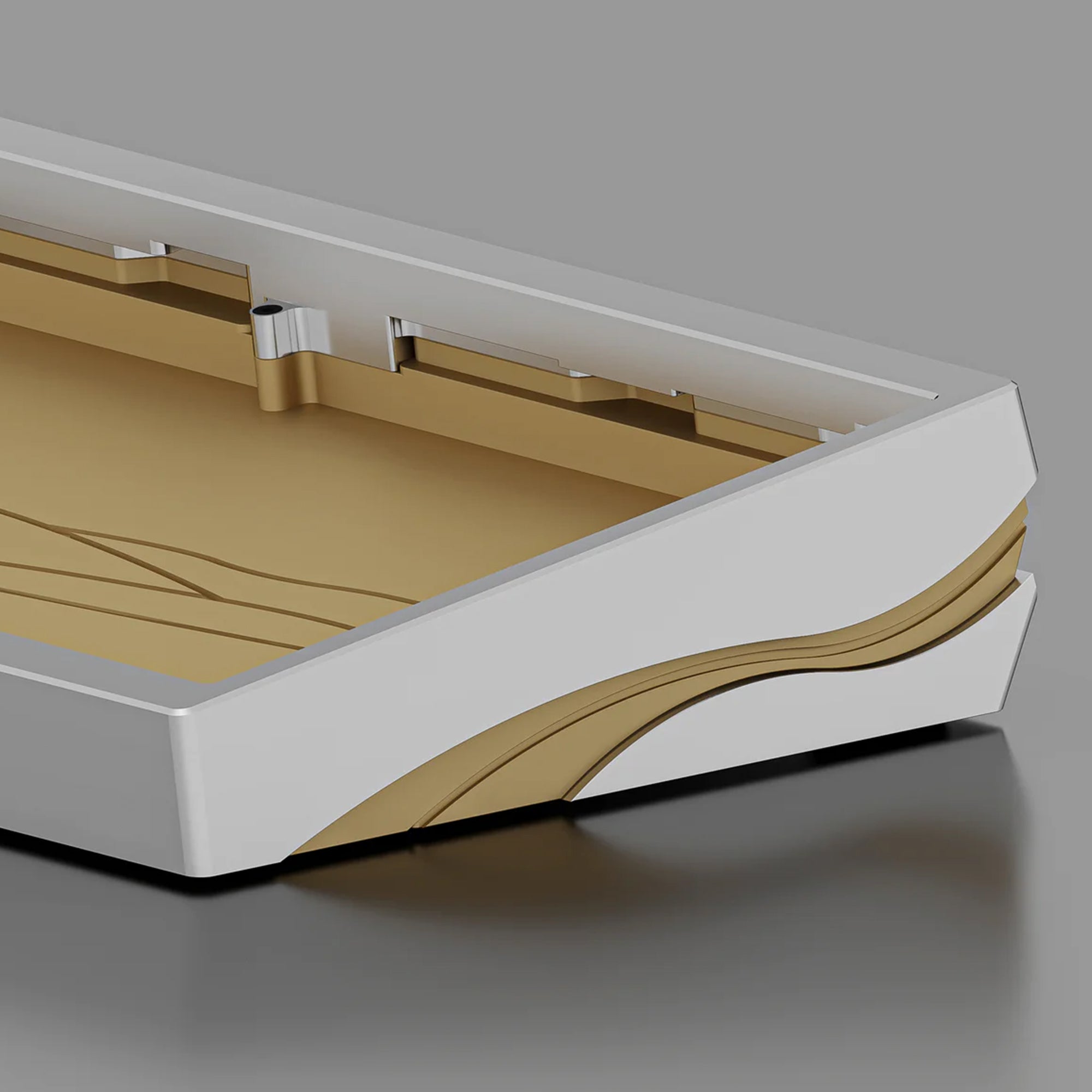

The design inspiration for Dune65 comes from the lines of sand dunes formed by the wind.

We aim for its shape to be aesthetically pleasing while maintaining simplicity, which is why we have eliminated logos and text, focusing instead on the most basic elements of points, lines, and surfaces to refine its form.

The interwoven lines on the back can represent either a desert stretching across the horizon or layers of rolling dunes, allowing each individual to enrich its connotations through their own imagination.

IC:  https://geekhack.org/index.php?topic=123302.0

Specification:

• 65% Layout, 6.25U WK Layout/ 7U WKL Layout
• Anodized aluminum 6063 top case and bottom cover
• Mid piece in brass
• Mounting style: Leaf Spring Top Mount + Gasket Mount
• Typing angel: 8°
• 1.6mm non-flex-cut hotswap/ solder PCB, support QMK+VIA
• Default aluminum plate, optional half aliuminum plate
• Designer: Kenny & Jingvv

Building and typing test videos

• Building tutorial and sound test (From Bilibili 沉迷客制化的波比)
• Typing test (From zenkioteque)
• Building tutorial and sound test (From Bilibili 双子Yeap)

Firmware

• Dune65_Solder.json
• Dune65_Hot-swap.json

Kit Includes:

• Top case x1

• Mid piece in brass x1

• Bottom aluminum bar x1

• Black Aluminm full plate x1

• Daughterboard and JST Cable x1

• Foam kit x1

• PET Insulation sheet

• Sillicone gasket x1 set

• H 1.5 screwdriver and bits

• Force break mod x1 set

• Bumpon

• Rubber feet x1 set

• Carrying case x1

• Screws x1 set


Layout:

Solder PCB:

Hotswap PCB:

Vendor list:

• Geonworks
• Keyspensory
• Prototypist
• KBDfans
