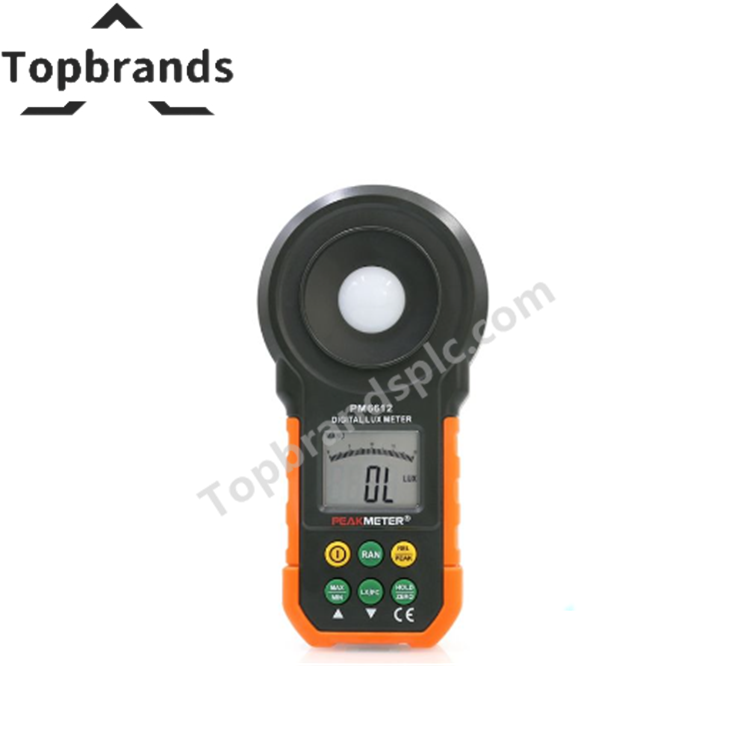

HYELEC MS6612 Digital Lux Meter

Description

The HYELEC MS6612 (also branded as PEAKMETER/MS6612) is a handheld digital lux meter designed for measuring light intensity in both Lux and Foot-Candles. It is widely used in lighting engineering, environmental studies, and workplace safety to ensure proper illumination levels.

Specifications

• Model: MS6612

• Manufacturer: HYELEC / PEAKMETER / MASTECH

• Measuring Range (Lux): 0–200,000 Lux

• Measuring Range (FC): 0–20,000 Fc

• Accuracy: ±3% (calibrated at 2854K incandescent lamp)

• Spectral Response: 320–730 nm

• Display: 2000 counts digital LCD with analog bar indication

• Functions: Relative measurement, peak measurement, auto/manual ranging, zero calibration

• Data Hold: Yes

• Auto Power Off: Yes

• Operating Temperature: -10°C to +50°C, ≤80% RH non-condensing

• Dimensions: 170 × 89 × 43 mm

• Weight: ~175 g (without battery)

• Power Supply: Standard battery (commonly 9V)

Features

• Wide Measurement Range: Covers up to 200,000 Lux for diverse lighting environments.

• Dual Units: Measures in both Lux and Foot-Candles for global usability.

• User-Friendly: One-button operation with audible buzzer confirmation.

• Flexible Ranging: Auto and manual modes for precise control.

• Peak & Relative Measurement: Captures maximum light levels and relative changes.

• Portable Design: Lightweight and compact for field use.

• Safety Compliance: CE certified for professional applications.

• Applications: Ideal for lighting design, environmental monitoring, workplace safety, and laboratory use.
