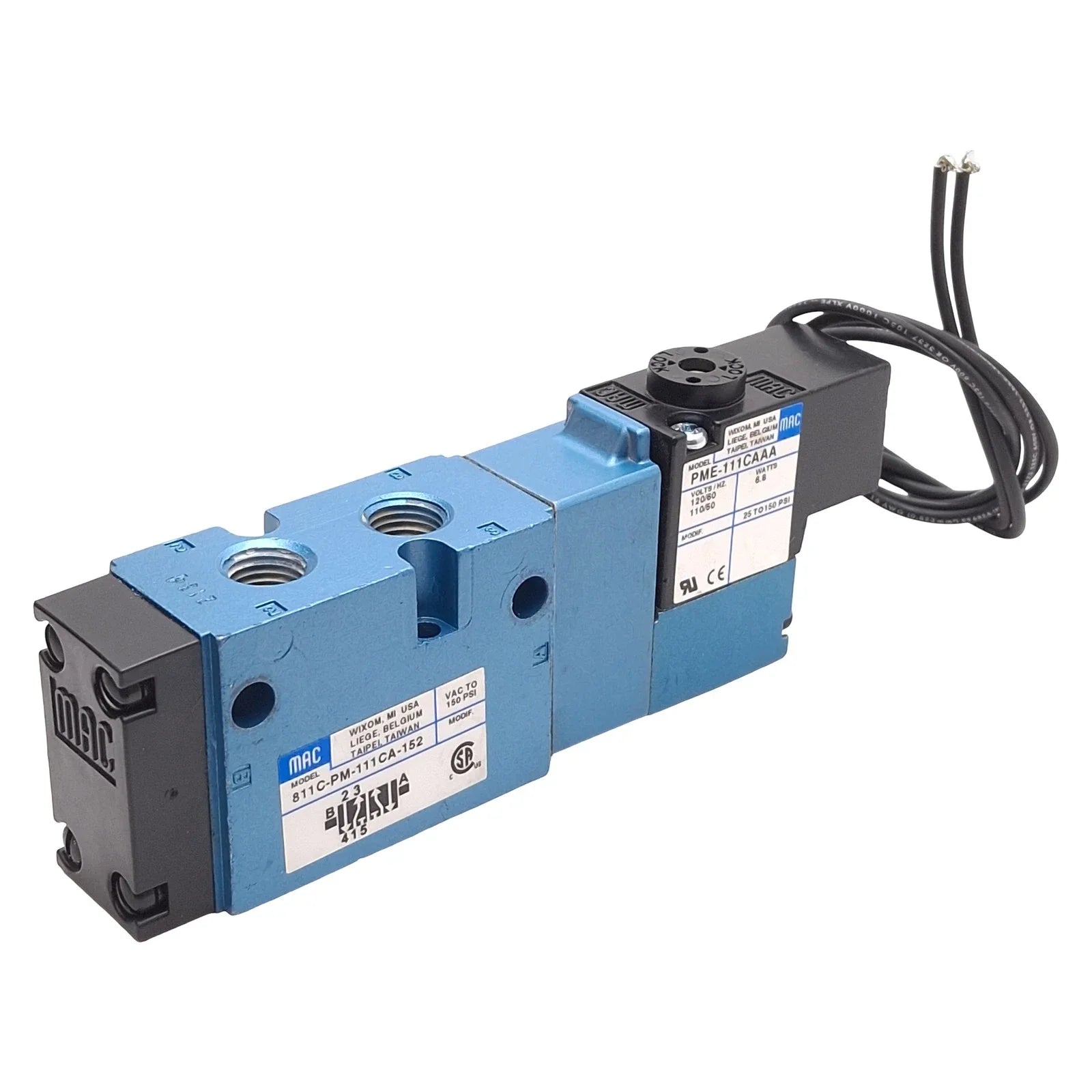

811C-PM-111CA-152 | Mac Valves Inc Solenoid Valve 110/120 Vac
811C-PM-111CA-152 | Mac Valves Inc Solenoid Valve 110/120 Vac
Description
The Mac Valves 811C-PM-111CA-152 is a 5/2-way, single-solenoid piloted valve engineered for precise pneumatic switching in industrial systems. Designed with 1/4" NPTF ports and a 110–120 VAC coil, it delivers dependable operation across a 20 to 150 PSI pressure range.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Mac Valves Inc |
| Category | Valves |
| Part Number | 811C-PM-111CA-152 |
| Subcategory | Solenoid Valve |
| Number of Solenoids | 1 |
| Valve Function | 5/2-Way, Directional Control |
| Port Size | 1/4" NPTF |
| Voltage | 110–120 VAC |
| Frequency | 50/60 Hz |
| Body Configuration | Internal Pilot, 2-Position |
| Cv Rating | 1.4 |
| Manual Operator | Non-Locking Recessed |
| Electrical Connection | 1/2" NPS Conduit Entry |
| Pilot Exhaust | Muffled |
| Operating Pressure | 20–150 PSI |
| Actuation Type | Solenoid with Mechanical Spring Return |
| Mounting Style | Inline Installation |
| Dimensions | 60 mm × 30 mm × 200 mm |
| Series | 800 Series |
| Construction | Pneumatic/Piston Spool |
Information About 811C-PM-111CA-152
The 811C-PM-111CA-152 is part of Mac Valves’ 800 Series, a family of high-performance solenoid valves known for fast response, durability, and stable pilot operation. This model features a 5-port, 2-position configuration with an internal pilot supply, offering reliable control for actuators and pneumatic cylinders in automation systems. It includes a non-locking recessed manual operator for safe on-site testing, a steel mechanical spring return for monostable operation, and a muffled pilot exhaust to reduce noise during switching. Designed for in-line installation, the valve incorporates 1/4" NPTF pneumatic ports and a 1/2" NPS conduit entry for wiring, ensuring compatibility with standard industrial mounting and electrical practices. With its piston-spool design and rugged construction, the 811C-PM-111CA-152 supports long service life in demanding environments such as machine automation, packaging equipment, and material-handling systems.
Key Features:
- 5/2-Way Single-Solenoid Design: Provides two-position directional control for pneumatic actuators using a single AC-powered solenoid.
- Internal Pilot Air Supply: Eliminates the need for an external pilot line, simplifying installation in compact systems.
- 1/4" NPTF Porting: Ensures compatibility with standard pneumatic fittings and supports efficient airflow (Cv 1.4).
- Non-Locking Recessed Manual Operator: Allows convenient manual override during setup and diagnostics without accidental activation.
- Steel Mechanical Spring Return: Provides dependable monostable actuation with automatic valve reset when de-energized.
- Muffled Pilot Exhaust: Reduces operational noise and improves working-environment comfort.
- 110–120 VAC Coil (50/60 Hz): Supports common industrial voltages for consistent and responsive solenoid actuation.
- Compact Inline Installation: Streamlined form factor (60 × 30 × 200 mm) allows direct mounting into pneumatic lines without additional hardware.
The 811C-PM-111CA-152 delivers the reliability and precision required for pneumatic switching, machine actuation, and automation system control.
