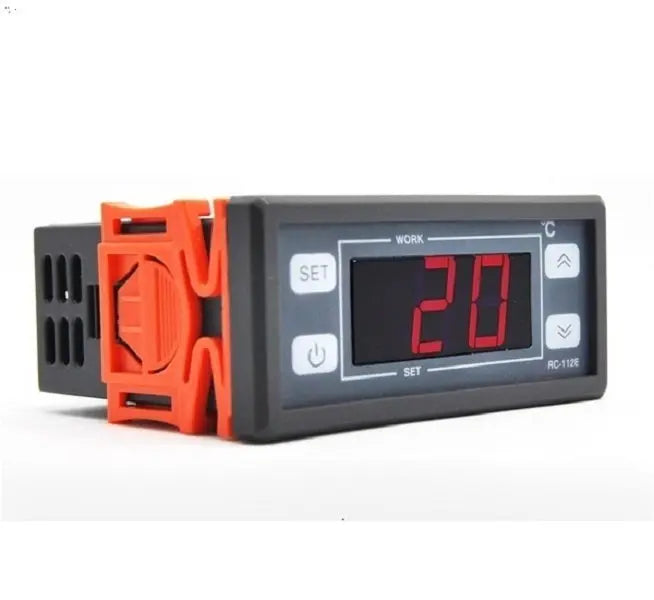

Ringder RC-112E Cool Heat ON/OFF Relay Switch Universal Digital Thermostat Temperature Controller
$27.12
Sale price
$27.12
Regular price
Skip to product information
Ringder RC-112E Cool Heat ON/OFF Relay Switch Universal Digital Thermostat Temperature Controller
$27.12
Sale price
$27.12
Regular price
All Purpose Cheap Cool/Heat Digital Temperature Controller
Model: RC-112E
Features:
- LED display
- Best cost-effective
- Traditional design
-
Heating/cooling control
Parameters:
- Temperature measuring and controlling range: -40~99°C
- Relay capacity of Compressor options: 10A
- Power options: 220VAC
- Input: 1 NTC sensor; sensor wire: 2m(standard)
- Accuracy: ±1°C; Resolution: 1°C
- Consumption: ≤3W
-
Sensor: NTC sensor (1pc)
- Cut-out size: 71×29(mm)
- Ambient requirements: temperature: -10~60°C; humidity: 20~85% (No condensate)
Function Menu:
|
Code |
Function |
Setting range |
Default |
Unit |
|
HC |
Mode option |
C: refrigeration H:heating |
C |
/ |
|
D |
Controlling-temp. differential |
1~15 |
3 |
°C |
|
LS |
Lower Temp. limit |
-40~setting Temp. |
-40 |
°C |
|
HS |
Upper Temp. limit |
Setting Temp.~99 |
99 |
°C |
|
CA |
Temp. calibration |
-5~5 |
0 |
°C |
|
PT |
Compressor delay |
0~15 |
3 |
Min. |
Wiring Diagram:
